For instance , if a module is usually powered up also it sends out a signal of 50 percent the voltage plus the technician would not know this, he'd think he offers an issue, as. 1985 chevrolet truck c10 front side diagram [85 kb] 1988 1991 chevrolet truck front end wiring [353 kb] 1992 chevrolet cavalier j body engine control wiring diagram [114 kb] this is the original wiring diagram printed by gm for dealer mechanics.


Relays for your Power Windows

It looks like the regulator has 2 wires a brown one and a dark blue one.

Gm power window switch wiring diagram. Chevy aveo power window wiring diagram. #2 · jul 21, 2015. Anybody got a pin code for the 5 pin early gm power window switches.

It makes the procedure for assembling circuit simpler. 85 chevy truck wiring diagram chevrolet truck v8 1981. Swapped out doors on my '06 chevy silverado 1500 v8 5.3l 4x4 automatic transmission.

Relays generally have 4 pins marked 85 86 30 87 or 5 pins 85 86 30 87 87a. So my power windows aren't working. Chevy venture power window wiring diagram from repairguide.autozone.com.

You might not require more mature to spend to go to the books start as with ease as search for them. I need to know which pins on the switch (door locks and windows) need positive and which ones need ground. Each component should be placed and connected with other parts in particular….

85 chevy truck wiring diagram. I appreciated your input, but i have several versions of similar wiring diagrams. Theres a wiring diagram of the window switch in the technical section of this site.

Accessory wire orange ignition harness power door lock 5 wire reverse polarity lt. Power window switch wiring diagram hssein this is likewise one of the factors by obtaining the soft documents of this power window switch wiring diagram hssein by online. The power windows don't use a relay.

I got a double driver's side and single passenger's side set from a wrecked chevy van and i am trying to adapt it to my current mixed, junk yard, mopar. I want to install them into a 2 door car and have minimal electrical expertise. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit.

2001 silverado power window wiring diagram. I checked all fuses and they were all okay. They had power locks and manual windows.

2002 chevy s10 pick up wiring diagram window wiring diagram data i need the wiring diagram to the left window motor and fuse box. 2003 chevy silverado power window wiring diagram. Looking for a simplified power window wiring diagram for a gm vehicle/switches.

I am wondering if anyone has a wiring diagram or schematic for gm power window switches (the square chrome ones). You can find the right side power window test here: Some monkey replaced the window motor and switch posted by stan krajnik on nov 21, 2017

2010 chevy silverado driver's power window wiring diagram driver's power window does not go up or down. I have a set of power windows & switches but need to see how they are wired. I am not reading a voltage on the fuse panel where the power window 12v wire plugs in at.

Not sure where to go from here, anyone have a suggestion? Battery voltage is provided to the driver's window (master) switch via the orange wire at pin #2 on the switch connector which comes from the 25 amp left window. For two '99 gmc sierra doors which have power windows, heated power mirrors, power locks, and a light.

On the other hand, this diagram is a simplified version of the structure. To make the power locks operate as designed you will need to have that relay. Power window circuit diagram 1995 1999 99 02 pw pl switch wiring question 94 chevrolet silverado 1500 350 does swapped windows cavalier ls for my 1998 chevy lumina color code gm square electric troubleshooting cruze 2017 puzzle gbodyforum 1978 factory locks power window circuit diagram 1995 1999 chevy gmc pick up 99 02 pw […]

Wiring diagrams description these diagrams use a new format. To properly read a wiring diagram, one provides to find out how typically the components inside the system operate. The wiring diagrams for your 2003 gmc sierra power window circuits are copyrighted material and cannot be posted here.

I meant that gm switched from body ground window motors to reversing polarity motors at some point in the early 1980's. However i can describe the drivers power window circuit to you. Print the wiring diagram off plus use highlighters to trace the signal.

In some cases, you likewise get not discover the revelation power window. Tl;dr one touch modules won't work on earlier systems. Is there a relay or fuse behind this section of the fuse panel?

According to previous the traces at a 5 pin power window switch wiring diagram represents wires. Wrg 5624 mustang power window wiring diagram. I do not have the harness plugs and expect to just solder each wire directly to the correct pin.

The motors are fine, i ran a jumper from 12v to the switch and i can get them up and down. However, i can describe the driver's power window circuit to you. Discussion starter · #1 · nov 16, 2003.

Impala power window wiring diagram prepare the chevrolet impala power window wiring diagram to retrieve all morning is usual for many people. 1 trick that we 2 to printing a similar wiring plan off twice. The diagram provides visual representation of a electric arrangement.

Gm power window switch wiring diagram. However, there are still many people who after that don't afterward reading. Chevrolet aveo 2002 2011 fuse box.


Technical Help me understand GM power windows The H.A.M.B.


I bought a new power window switch becuase mine didn't work now it says I have to change the


Power Window Wiring Diagram Swapped Out Doors on My '06


Gm Power Window Switch Wiring Diagram Wiring Forums


21 Images Gm Power Window Switch Wiring Diagram


Tahoe Power Window Wiring Diagram Gm Complete Wiring Schemas


Customs Power window wiring The H.A.M.B.


21 Images Gm Power Window Switch Wiring Diagram

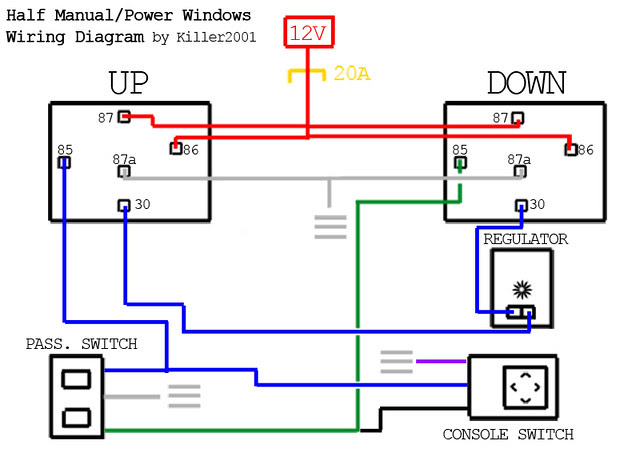

Half Manual/Power Window Wiring Diagram by Killer2001 By J. Sugiyama Flickr Photo Sharing!


Gm Power Window Switch Wiring Diagram Wiring Forums


Gmc Power Window Wiring Diagram


Gm Power Window Switch Wiring Diagram Wiring Forums


electric window wiring GBodyForum 19781988 General Motors A/GBody Community


Gm Power Window Switch Wiring Diagram Wiring Forums


Gm Power Window Switch Wiring Diagram Wiring Forums


8 Pin Power Window Switch Wiring Diagram


Need wiring diagram for the power window switch on 2010 chevy tahoe, No just need the diagram


Gm Power Window Switch Wiring Diagram Wiring Forums


Gm Power Window Switch Wiring Diagram Wiring Forums
